S/FTP Cat.5e Solid Lan Cable

S/FTP Cat.5e Solid Lan Cable S/FTP Cat.5e Solid Lan Cable S/FTP Cat.5e Solid Lan Cable
Details :

Application:

Exceeds ANSI/TIA-568-C.2 and ISO 11801 2nd Edition Class D Cat.5e channel standards
Exceeds requirements of ANSI/TIA-568.C.2 and IEC 61156-5 Cat.5e component standards
Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE application
Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.
Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap
Color availability: additional cable colors available

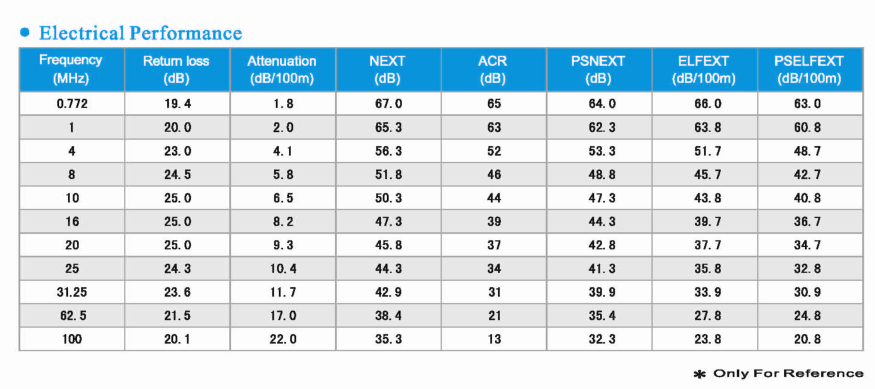

Electrical characteristics

Impedance:1-100MHz  100±15(ohms)
Rated Temperature:75℃
DC Resistance unbalance(%):max 2.5
DC Resistance 20℃:9.5(ohms/100m)
Pair-to-Ground Capacitance Unbalance:330(pF/100m)
Insulation Resistance: >5000MΩ*Km
Dielectric strength:DC 2500V 2S

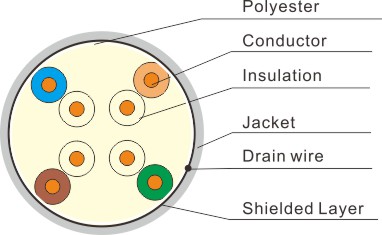

Conductor:

Conductor: bare solid copper
Conductor diameter: 24AWG
Pair insulation: HDPE
Outer cable diameter:6.5± 0.2mm
Pair identification: pair 1= white-blue/blue pair 2= white-orange/orange  pair 3= white-green/green  pair 4= white-brown/brown
Outer jacket: PVC/CMX/CM/CMR/LSZH/LDPE
Overall shield material: Aluminum foil
Jacket color: grey RAL 9002 or as per request
