SA Wall Cabinet
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Thickness:19” rails:1.2/1.5mm
Side panel 1.0mm,others:1.2mm
Color:
JBSA■■■■0■■:RAL7035
JBSA■■■■1■■:RAL9004
Loading Capacity:
Static loading:60KGS
Feature
Welded frame,reliable structure;
Standing or wall mounting installation;
Adjustable feet and heavy duty castors are optional;
Easy mounting installation(patent);
19” standard installation;
Removable side panels,side locks optional
Cable entry on both of top cover and bottom panel
120mm fan available;
Turning angle of front door is over 180 degrees

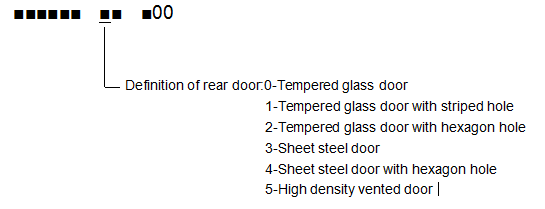

Definiion of Code

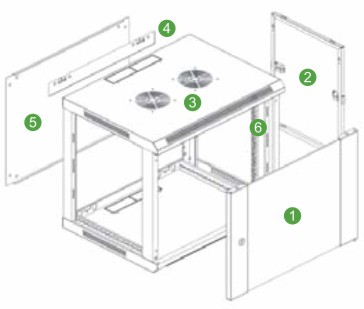

Main Part
| S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
| 1 |
Front door |
1 |
5MM toughed glass door/SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 2 |
Side panel |
2 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 3 |
Frame |
1 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 4 |
Mounting profile |
1 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 5 |
Back panel |
1 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 6 |
19" rails |
4 |
SPCC t1.2/1.5 |
Powder coated |
﹤15U Thinkness:1.2mm ﹥=15U Thinkness:1.5mm |
| A |
M6 screw&nuts |
10 |
Steel |
Color zinc |
20pcs for over 12U |
| B |
Trox tooling |
1 |
Steel |
Black |
﹣﹣﹣﹣ |

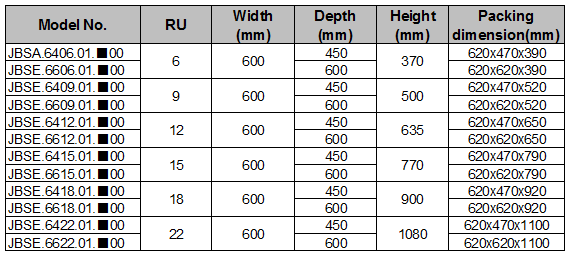

Order Information
