Application:
Used as a connection cable in the radio-communication.

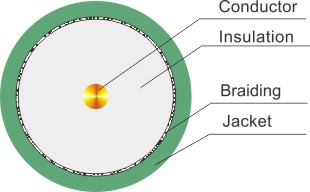

Product Description:
Inner conductor: 1/0.81mm BC or CCS
Insulation:3.66 Solid Polyethylene
Shield 1:Al Foil longitudinal
Shield 2:BC or AL wire Braid
Jacket:6.1mm PVC
Flammability grade:CMX,CM
Operating temperature:-25℃~70℃ or -40℃~70℃
Reference Standard:MIL-C-17
Electrical Characteristics:
Impedance: 75 Ohm± 3 Ohm
Capacitance:66± 3pF/m
Max Attenuation:20℃
Order Information:
| Part No. |
Cable Type |
Inner conductor(mm) |
Insulation(mm) |
Braid |
Jacket(mm) |
| AL-Foil |
No./mm |
| JBCO09 |
RG59 |
0.81 |
3.66FPE |
Yes |
16x2x0.12 |
6.1 |
| JBCO10 |
0.81 |
3.66FPE |
Yes |
16*3x0.12 |
6.1 |
| JBCO11 |
0.81 |
3.66FPE |
Yes |
16*4x0.12 |
6.1 |
| JBCO12 |
0.81 |
3.66FPE |
Yes |
16*6x0.12 |
6.1 |
