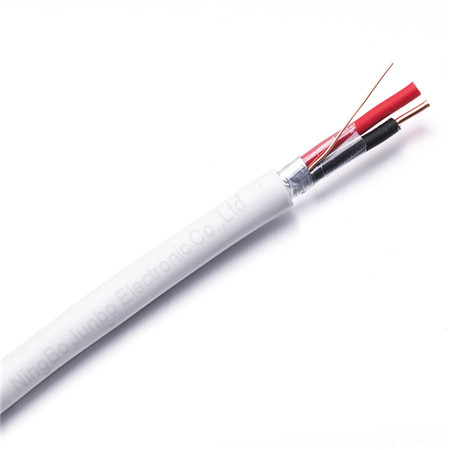

Product Description
Solid or stranded tinned or bare copper conductor
Fire-resistant PVC or LSOH insulation and jacket
Fiberglass tape or fire-resistant mica tape insulation(optional).
Test on electric cables under fire conditions complies with IEC60332-3-24:2000,UL1424,Power,
Limited Fire alarm circuit cables C22.2 No.208-03,Fire alarm and signal.
Measurement of smoke density of cable burning under defined conditions on electric cables under fire conditions complies to
IEC61034-2:2005
Test on electric cables under fire conditions complies to IEC60331-21:1999
Applications:
Fire detection and fire alarm systems for buildings
Voice alarm systems
Emergency voice communication.
Emergency and escape lighting
Other essential service control circuits for standard fire resistance.
Order Information:
| Part No. |
Conductor |
Insulation |
Jacket |
Packing |
| Nom Thick(mm) |
Nom Diam(mm) |
Nom Thick(mm) |
Nom Diam(mm) |
| JBFA01 |
2x0.5mm2 |
0.5 |
1.8 |
0.7 |
5.2 |
Box
Coil
Drum
Paper reel
Plastic reel
Wooden reel |
| JBFA02 |
3x0.5mm2 |
0.5 |
1.8 |
0.7 |
5.2 |
| JBFA03 |
2x0.8mm2 |
0.5 |
2.0 |
0.7 |
5.4 |
| JBFA04 |
3x0.8mm2 |
0.5 |
2.0 |
0.7 |
5.4 |
| JBFA05 |
2x1.0mm2 |
0.6 |
2.35 |
0.8 |
6.5 |
| JBFA06 |
3x1.0mm2 |
0.6 |
2.35 |
0.8 |
6.5 |
| JBFA07 |
2x1.5mm2 |
0.7 |
2.8 |
1.0 |
7.8 |
| JBFA08 |
3x1.5mm2 |
0.7 |
2.8 |
1.0 |
7.8 |
| JBFA09 |
2x2.5mm2 |
0.8 |
3.4 |
1.0 |
9.0 |
| JBFA10 |
3x2.5mm2 |
0.8 |
3.4 |
1.0 |
9.0 |
