12 Core SC/APC Fiber Optic Distribution Cable Patch Cord
Excellent characteristics, content with different requirement indoor,
Include: buildings,lift well,FTTD. It can supply bandwidth,
transmission speech,data,TV and image.
Characteristic: small diameter,light weight,flexibility.
So it Is easy to installation,maintenance and manage.

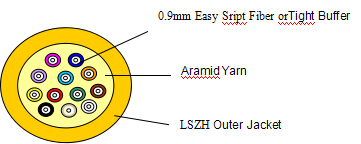

Geometrical Characteristics
|
Distribution Cable Type
|
2
|
4
|
6
|
8
|
12
|
24
|
|
Distribution Cable Diameter(mm)
|
4.00
|
5.10
|
5.30
|
6.00
|
6.60
|
8.50
|
|
Distribution Cable Weight(kg/km)
|
18
|
20
|
22
|
25
|
28
|
50
|
|
TBF Diameter(μm)
|
900±50
|
Mechanical Characteristics
|
Max Load(N)
|
Long Term
|
130
|
130
|
130
|
130
|
130
|
200
|
|
Short Term
|
440
|
440
|
440
|
440
|
440
|
660
|
|
(CM)
Bending Radius(CM)
|
Dynamic
|
20×D (D: Cable Diameter)
|
|
Static
|
10×D (D: Cable Diameter)
|
Fiber
|
Fiber Type(core/cladding dimension)
|
9/125, 50/125, 62.5/125
|
Transmission Characteristics
|
|
SMF
|
50/125,10g50/125
|
62.5/125
|
|
|
1310/1550(nm)
|
850/1300(nm)
|
850/1300(nm)
|
|
Max Attenuation(dB/km)
|
0.45/0.30
|
3.5/1.5
|
3.5/1.5
|
|
AVG. Attenuation(dB/km)
|
0.40/0.25
|
3.0/1.0
|
3.0/1.0
|
|
Min Bandwidth(MHz·km)
|
——
|
400/400
|
160/500
|
Environmental Characteristics
|
Storage Operating Temperature
|
-20℃~+60℃
|
