F/FTP Cat.6A Solid Lan Cable

F/FTP Cat.6A Solid Lan Cable F/FTP Cat.6A Solid Lan Cable F/FTP Cat.6A Solid Lan Cable
Details :

Standard

IEC/ISO 61156-5
ANSI/TIA568C.2
ISO/IEC 11801



Application

Suitable for structured premises cabling
For transmission of digital and analogue voice and data signals.
Especially suitable for all Class EA applications.
ISDN,Ethernet 10Base-T,Fast Ethernet 100Base-T,Gigabit Ethernet 1000 Base-T,10G Base-T(IEEE802.3)
Token Ring4/16M bit/s,TP-PMD/TP/DDI 125 Mbit/s,ATM 155M Bit/s(IEEE802.5)

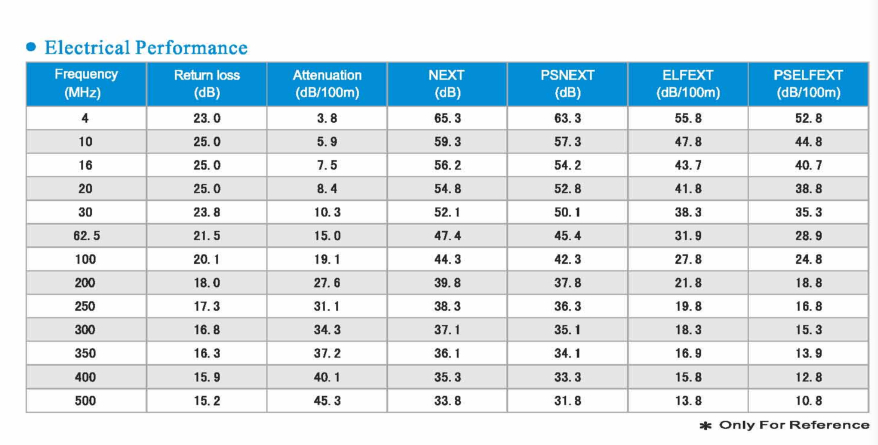

Electrical Characteristics

Impedance:1-100MHz  100±15(ohms)
              100-250MHz  100±22(ohms)
              250-500MHz  100±25(ohms)

Max.Conductor DC Resistance 20℃:8.7(ohms/100m)
Resistance unbalance(%):max 2.5
Pair-to-Ground Capacitance Unbalance:330(pF/100m)
Transfer Impendance:Max 10 mohms/m@100MHz
Installation temperature:0~50℃
Operation temperature:-20∽60℃

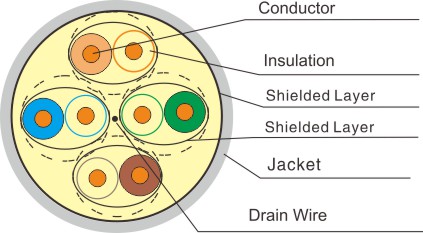

Conductor:

Conductor: bare solid copper
Conductor diameter: 23AWG
Pair insulation: PE(Skin-Foam-Skin)
Individual shield material: aluminum foil
Outer cable diameter:8.0± 0.3mm
Pair identification: pair 1= blue/white pair 2= orange/white pair 3= green/white pair 4= brown/white
Outer jacket: PVC/CMX/CM/CMR/LSZH/LDPE
Overall shield material: tinned copper braid
Jacket color: grey RAL 9002 or as per request
