Center Bundle light Armored Optical Fiber Cable

Details :

Center Bundle light Armored Optical Fiber Cable(GYXTW)

Introduction

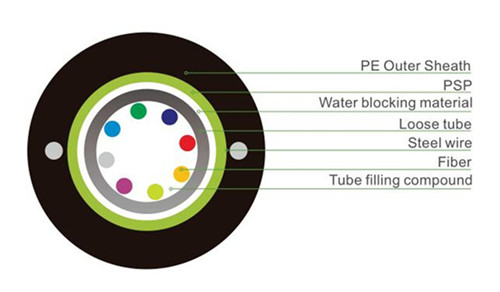

The fibers are placed in a loose tube made of PBT.The tube is filled with a water-resistant filling compound.
The tube is wrapped with a layer of PSP longitudinally.Between the PSP
and the loose tube water-blocking material is applied to keep the cable compact and wateright.
Two parallel steel wires are placed at the two sides of the steel tape.The cable is completed with a PE sheath.

G652D fiber information

Mode field diameter(1310nm):9.2μm±0.4μm

Mode field diameter((1550nm):10.4μm±0.8μm

Cladding diameter: 125μm±1.0μm

Coating diameter: 245μm±7μm

Cut off wavelength of cabled fiber:≤1260μm

Attenuation at 1310nm:≤0.35dB/km

Attenuation at 1550nm:≤0.21dB/km

Bending loss at 1550nm(100 turns,30mm radius):≤0.05dB

Dispersion in the range 1288 to 1339nm:≤3.5ps/(nm.km)

Dispersion at 1550nm:≤18ps/(nm.km)

Dispersion slope at zero dispersion wavelength:≤0.092ps/(nm2.km)

Order Information

Part No.	Description	Specification
JBOF01-S	Single Mode	2-12 cores
JBOF01-M	Multimode	2-12 cores
