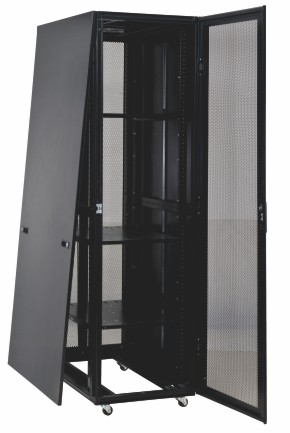

603 Cabinet
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Thickness:19” rails:2.0mm
frame:1.5mm,others:1.2mm
Color:
JB603■■■■■■0■■:RAL7035
JB603■■■■■■1■■:RAL9004
Loading Capacity:
Static loading:1000KGS
Feature
Reticular high density vented front door(patent)&rear door for protection,ventilation and reliable operation.
Exquisite image with precise dimension and craftsmanship;
Lockable cable entry on the top cover and bottom panel with adjustable sizes;
Optional plinth enables cabinets to stay in a fixed position while meeting requirements of under-base wiring/ventilation and rat prevention.
Strong cabinet connection by baying kit(patent).
Lock with handle

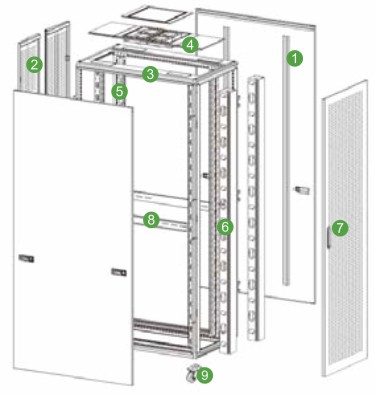

Main Part
| S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
| 1 |
Side panel |
2 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 2 |
Rear door |
1 |
SPCC t1.2 |
Powder coated |
Double high density vented |
| 3 |
Frame |
1 |
SPCC t1.5 |
Powder coated |
﹣﹣﹣﹣ |
| 4 |
Top cover |
1 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 5 |
19" rails |
4 |
SPCC t2.0 |
Powder coated |
﹣﹣﹣﹣ |
| 6 |
Cable management slot |
2 |
SPCC t1.0 |
Powder coated |
Only used for 800 width cabinet |
| 7 |
Front door |
1 |
SPCC t1.2 |
Powder coated |
High density vented |
| 8 |
Mounting plate |
2 |
SPCC t1.5 |
Powder coated |
﹣﹣﹣﹣ |
| 9 |
2" heavy duty castor |
4 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
| A |
M12 adjustable feet |
4 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
| B |
M6 screw&nuts |
20 |
Steel |
Color zinc |
40pcs for over 33U |
| C |
Trox tooling |
1 |
Steel |
Color zinc |
﹣﹣﹣﹣ |
| The 600mm width cabinet can be changed to the 800mm width one,only need to put the connecting panel and 2 cable management slots.Support 19”EIA equipment. |
Order Information
| Model No. |
Capacity(U) |
Width (mm) |
Depth (mm) |
Height (mm) |
Packing dimension(mm) |
| JB603.6633.55.■00 |
33 |
600 |
600 |
1600 |
670x670x1700 |
| JB603.6638.55.■00 |
38 |
1800 |
670x670x1900 |
| JB603.6642.55.■00 |
42 |
2000 |
670x670x2100 |
| JB603.6647.55.■00 |
47 |
2200 |
670x670x2300 |
| JB603.6833.55.■00 |
33 |
800 |
1600 |
670x870x1700 |
| JB603.6838.55.■00 |
38 |
1800 |
670x870x1900 |
| JB603.6842.55.■00 |
42 |
2000 |
670x870x2100 |
| JB603.6847.55.■00 |
47 |
2200 |
670x870x2300 |
| JB603.6933.55.■00 |
33 |
900 |
1600 |
670x970x1700 |
| JB603.6938.55.■00 |
38 |
1800 |
670x970x1900 |
| JB603.6942.55.■00 |
42 |
2000 |
670x970x2100 |
| JB603.6947.55.■00 |
47 |
2200 |
670x970x2300 |
| JB603.6042.55.■00 |
42 |
1000 |
2000 |
670x1070x2100 |
| JB603.6047.55.■00 |
47 |
2200 |
670x1070x2300 |
| JB603.8642.55.■00 |
42 |
800 |
600 |
2000 |
870x670x2100 |
| JB603.8842.55.■00 |
42 |
800 |
2000 |
870x870x2100 |
| JB603.8942.55.■00 |
42 |
900 |
2000 |
870x970x2100 |
| JB603.8042.55.■00 |
42 |
1000 |
2000 |
870x1070x2100 |
| Note:Cabinet should not in flat packing |
