606 Open Rack
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Column:1.5mm,others:2.0mm
Color:
JB606■■■■■■0■■:RAL7035
JB606■■■■■■1■■:RAL9004
Loading Capacity:
Static loading:150KGS
Feature
Modular design,easily assemble and disassemble for delivery,low cost
Various optional accessories according to requirements(cable management slot,removable working panel,etc.,)

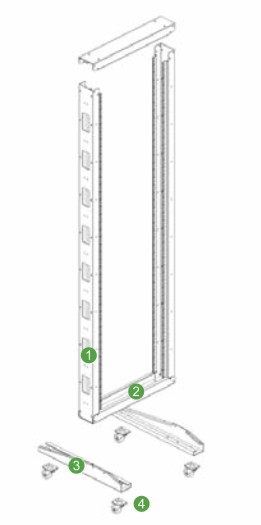

Main Part:
| S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
| 1 |
Column |
2 |
SPCC t1.5 |
Powder coated |
﹣﹣﹣﹣ |
| 2 |
Plinth |
2 |
SPCC t2.0 |
Powder coated |
﹣﹣﹣﹣ |
| 3 |
Support Corss beam |
2 |
SPCC t2.0 |
Powder coated |
﹣﹣﹣﹣ |
| 4 |
2" heavy duty castor |
4 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
| A |
M6 screw&nuts |
20 |
Steel |
Color zinc |
40pcs for over 33U |
| B |
Trox tooling |
1 |
Steel |
Black |
﹣﹣﹣﹣ |
Order Information
| Model No. |
RU |
Width (mm) |
Depth (mm) |
Height (mm) |
Volume(CBM) |
| JB606.6629.00.■00 |
29 |
600 |
600 |
1422 |
1420x260x140 |
| JB606.6633.00.■00 |
33 |
600 |
600 |
1600 |
1600x260x140 |
| JB606.6638.00.■00 |
38 |
600 |
600 |
1822 |
1820x260x140 |
| JB606.6642.00.■00 |
42 |
600 |
600 |
2000 |
2000x260x140 |
| JB606.6647.00.■00 |
47 |
600 |
600 |
2222 |
2220x260x140 |
