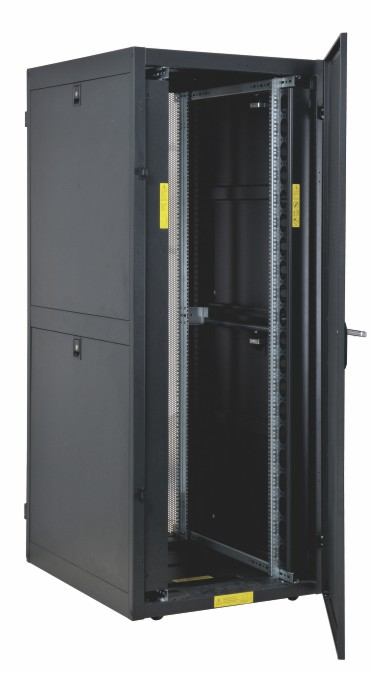

VE Cabinet
Standard:
Comply with ANSI/EIA RS-310-D,IEC60297-2,DIN41494
Part1,DIN41494,Part7
Material:
SPCC Cold Rolled Steel;
Thickness:19” rails:2.0mm
Casters tray:2.0mm others:1.2mm
Color:
JBVE■■■■■■0■■:RAL7035
JBVE■■■■■■1■■:RAL7021
Loading Capacity:
Static loading:1300KGS
Feature
Packing:VE cabinets could be shipped in disassembled packing,saving transportation and storage cost.
New appearance design:Side door:split into 2 parts,lockable with square locksFront and rear door:pluggable front door and rear doors,with external hinges.
Casters:built-in installation design
Frame:duplex profile frames with patent,could be connected by 8pcs of screws.
Front and rear doors:“two points”locking design marking doors and frames closed tighter,turning angle up to 180 degrees.
Cable entries on top and bottom:sliding and adjustable cable entries on top and bottom,edges of cable entries are with the design to prevent wires from scratching.
Fan unit:installed from top outside of cabinet,easy to install and maintain.
Mounting rails:installation positions of mounting rails could be adjusted quickly.Dedicated channel alignment reserved in internal of cabinets
Cabinet structure:patented structure
Maximum loading capacity:1300kg

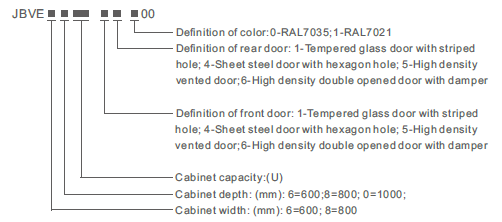

Definition of Code

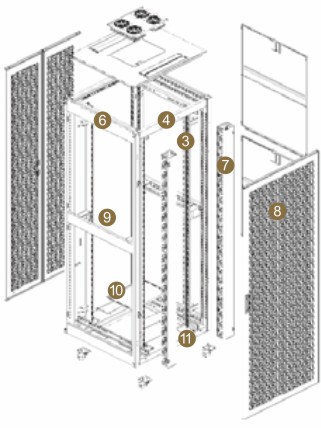

Main Part:
| S/N |
Specification |
Qty |
Material |
Surface Finish |
Remark |
| 1 |
Rear door |
1 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
see front&rear door type |
| 2 |
Side panel |
4 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 3 |
19" rails |
4 |
T2.0 |
zinc-plated |
﹣﹣﹣﹣ |
| 4 |
Front beam |
2 |
SPCC t1.5 |
Powder coated |
﹣﹣﹣﹣ |
| 5 |
Top cover |
1 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 6 |
Side frame |
2 |
SPCC t1.2 |
Powder coated |
﹣﹣﹣﹣ |
| 7 |
Cable management slot |
2 |
SPCC t1.0 |
Powder coated |
Only used for 800 width cabinet |
| 8 |
Front door |
1 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
see front&rear door type |
| 9 |
Mounting spacer |
4 |
T2.0 |
zinc-plated |
Only used for 800 width cabinet |
| 10 |
Bottom |
1 |
SPCC t1.0 |
Powder coated |
﹣﹣﹣﹣ |
| 11 |
Caster tray |
2 |
SPCC t2.0 |
Powder coated |
﹣﹣﹣﹣ |
| 12 |
2" heavy duty castor |
4 |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
﹣﹣﹣﹣ |
| hardware kits with cabinet: |
| A |
M12 adjustable feet |
4 |
Steel |
zinc-plated |
Height:100mm |
| B |
M6 screw&nuts |
20/40 |
Steel |
zinc-plated |
40pcs for over 33U |
Order Information
| Model No. |
Width (mm) |
Depth (mm) |
Capacity (U) |
Height (mm) |
CKD packing parts |
| JBVE.6624.■■.■00 |
600 |
600 |
24 |
1200 |
3 |
| JBVE.6642.■■.■00 |
42 |
2000 |
| JBVE.6824.■■.■00 |
800 |
24 |
1200 |
| JBVE.6842.■■.■00 |
42 |
2000 |
| JBVE.6042.■■.■00 |
1000 |
42 |
2000 |
| JBVE.8842.■■.■00 |
800 |
800 |
42 |
2000 |
4 |
| JBVE.8042.■■.■00 |
1000 |
42 |
2000 |

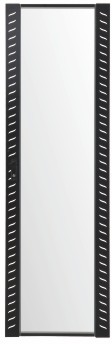

Front&Rear Door(type1)
Tempered glass door
long-handled lock
180°Maximum opening angle
Material:Sheet steel 4mm safety glass
Surface Finish:Powder coated
Colour:RAL7035/RAL7021

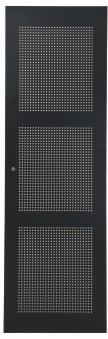

Front&Rear Door(type4)
Sheet steel door with hexagon hole
long-handled lock
180°Maximum opening angle
Material:Sheet steel
Surface Finish：Powder coated
Colour:RAL7035/RAL7021
Front&Rear Door(type5)
High density vented door;
Slotted surface(SW7 hexagon)
Air inlet opening﹥67%
long-handled lock
180°Maximum opening angle
Material:Sheet steel
Surface Finish:Powder coated
Colour:RAL7035/RAL7021

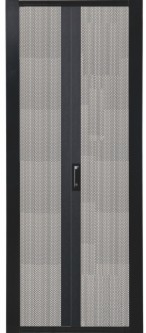

Front&Rear Door(type6)
High density double opened damper
(SW7 hexagon)Air inlet opening﹥67%
long-handled lock
180°Maximum opening angle
Material:Sheet steel
Surface Finish:Powder coated
Colour:RAL7035/RAL7021

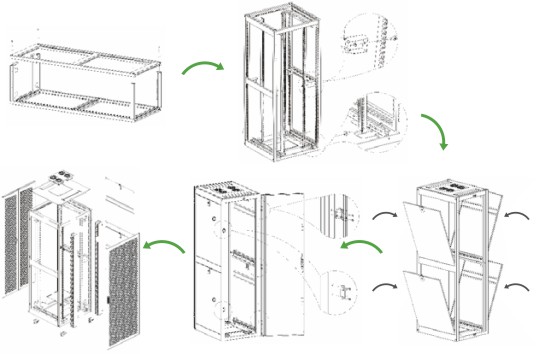

Assembling Draft

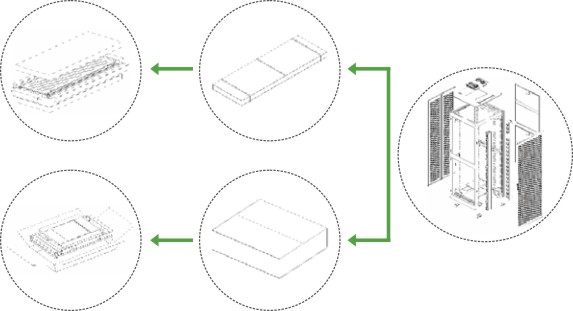

CKD Packing
