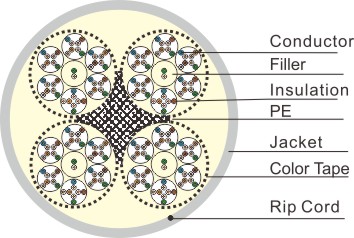

25/50/100 Pairs UTP Cat.5 Solid Cable

Details :

Application

Exceeds requirements and ISO 11801 Class D channel standards

Exceeds requirements and IEC 61156-5 Cat.5 component standards.

Descending length cable markings enable easy identification of remaining cable which reduces installation time and cable scrap

Color availability: additional cable colors available

Package:305m(1000feet) on a reel.

Electrical characteristics

Impedance: 1-100MHz 100 ±15ohms

Rated Temperature: 75°C

DC Resistance Unbalance: max 2.5%

DC Resistance 20°C: 111(ohm)

Pair-to-Ground Capacitance Unbalance: 330(pF/100m)

Insulation Resistance: >5000MΩ*km

Dielectric strength: 2500V DC, 2S

Mechanical Characteristics

Cable under the minimum tension:≥400N

Conductor elongation:≥15%

Jacket before Aging

Tensile Strength≥13.5Mpa

Elongation≥150%

Jacket After Aging

Tensile Strength≥12.5Mps

Elongation:≥125%
